Hydraulic Rubber Hose SAE 100 R17



One Layer Or Two Layers Steel Wire Reinforced Hydraulic Hose

SAE 100 R17 steel wire reinforced hydraulic hose is suitable for some equipment in a compact and narrow space, because it has smaller bending radius and outside diameter. It is composed of three parts: tube, reinforcement and cover. The tube is made from black and oil resistant synthetic rubber, making the hose widely used in delivering oils. The reinforcement is made from one layer or two layers of high tensile braided steel wire, making the hose have high working pressure. The cover is made from super high quality synthetic rubber, making the hose resistant to abrasion, corrosion, weather, ozone, aging and cut. Therefore, the hose has longer service life.

Recommended For:

Hydraulic Rubber Hose SAE 100 R17 is recommended for high pressure hydraulic oil lines. It exceeds the requirements of SAE 100 R17 and EN 857 1SC. The hose has smaller exterior dimensions and significantly tighter bend radius than SAE 100 R1 and SAE 100 R2 hoses.

Application Fields: Hydraulic hose SAE 100 R17 can be used for Hydraulic system with petroleum and water based fluids, for general industrial use as well.

INNER TUBE: oil resistant synthetic nitrile rubber

REINFORCEMENT: one layer (1/4-1/2″) or two layers (5/8-1″) of high tensile steel wire braided

COVER: oil and weather resistant synthetic rubber

APPLICATION: petroleum and water based hydraulic fluids

SURFACE: wrapped surface or smooth surface

TEMPERATURE RANGE: -40℃ (-104 ℉ ) to +100℃(+212 ℉)

Standard: SAE 100 R17

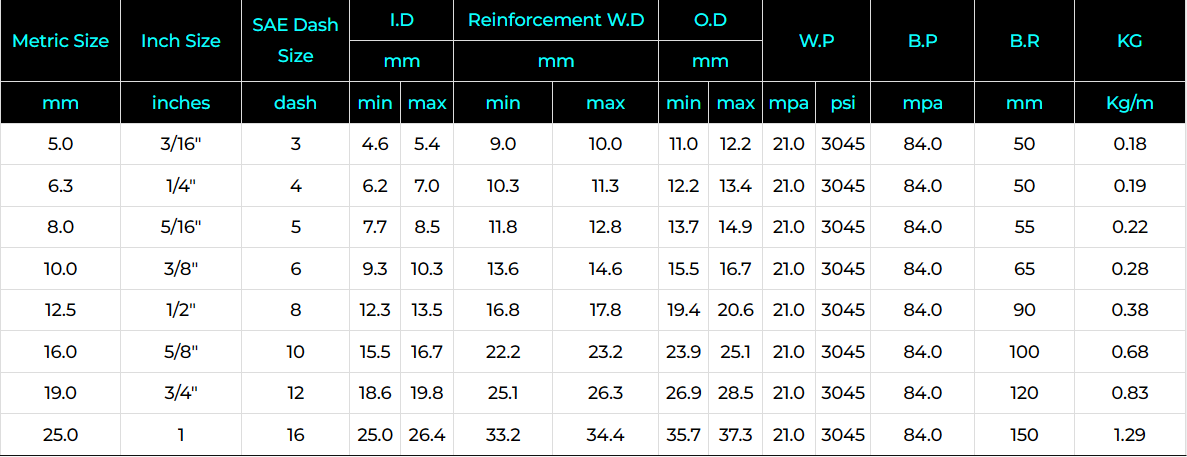

r17-specification

hydraulic hose steel wire braided

hydraulic hose

For rubber hose packing, we have plastic film, woven bag, carton box, etc. Customized package is supported.

application-htdraulic-hose

Customer photo
